Description

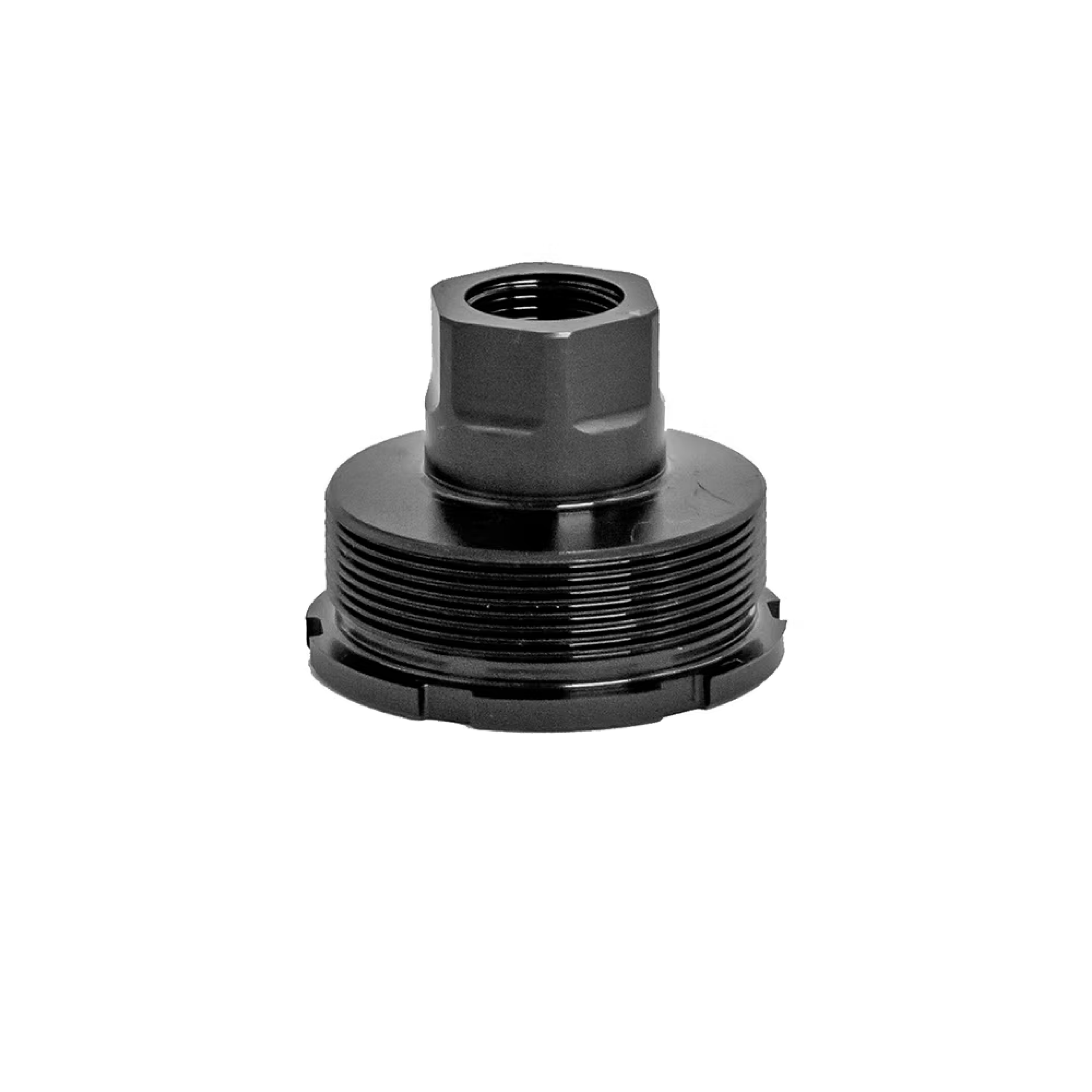

Recessed Direct Thread HUB Adapter

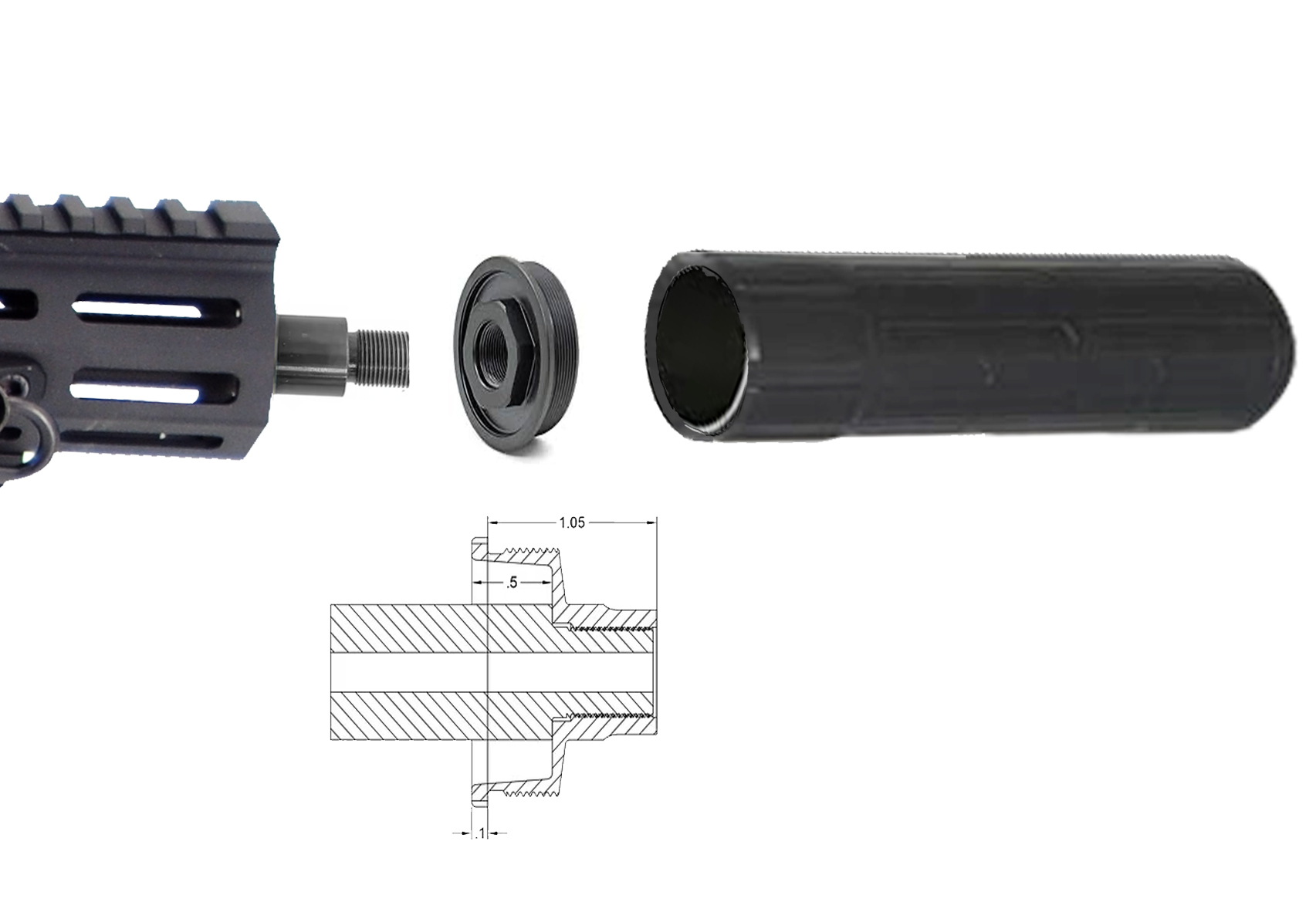

The recessed direct thread (RDT) HUB adapter seats over the barrel to reduce overall length by 0.5″ when the silencer is installed.

Design & Function
Specifically engineered to minimize overall length on rifles with a 1.25″ difference between barrel and handguard length. The Gen 2 design includes integrated wrench flats for easier and more secure installation onto the barrel.

Construction & Finish
Precision machined from 17-4 stainless steel and finished with either black nitride or heat-treated coating for durability and corrosion resistance.

Compatibility
Compatible with SilencerCo BRAVO HUB and all standard 1 3/8 × 24 threaded HUB-pattern muzzle devices.

Installation
Installs using a 1.5″ spanner wrench.

Specifications

• Available thread pitches: 1/2×28

• Diameter: 1.5″

• Weight: 1.9–2.1 oz

• Minimum clearance to first baffle: 0.95″
